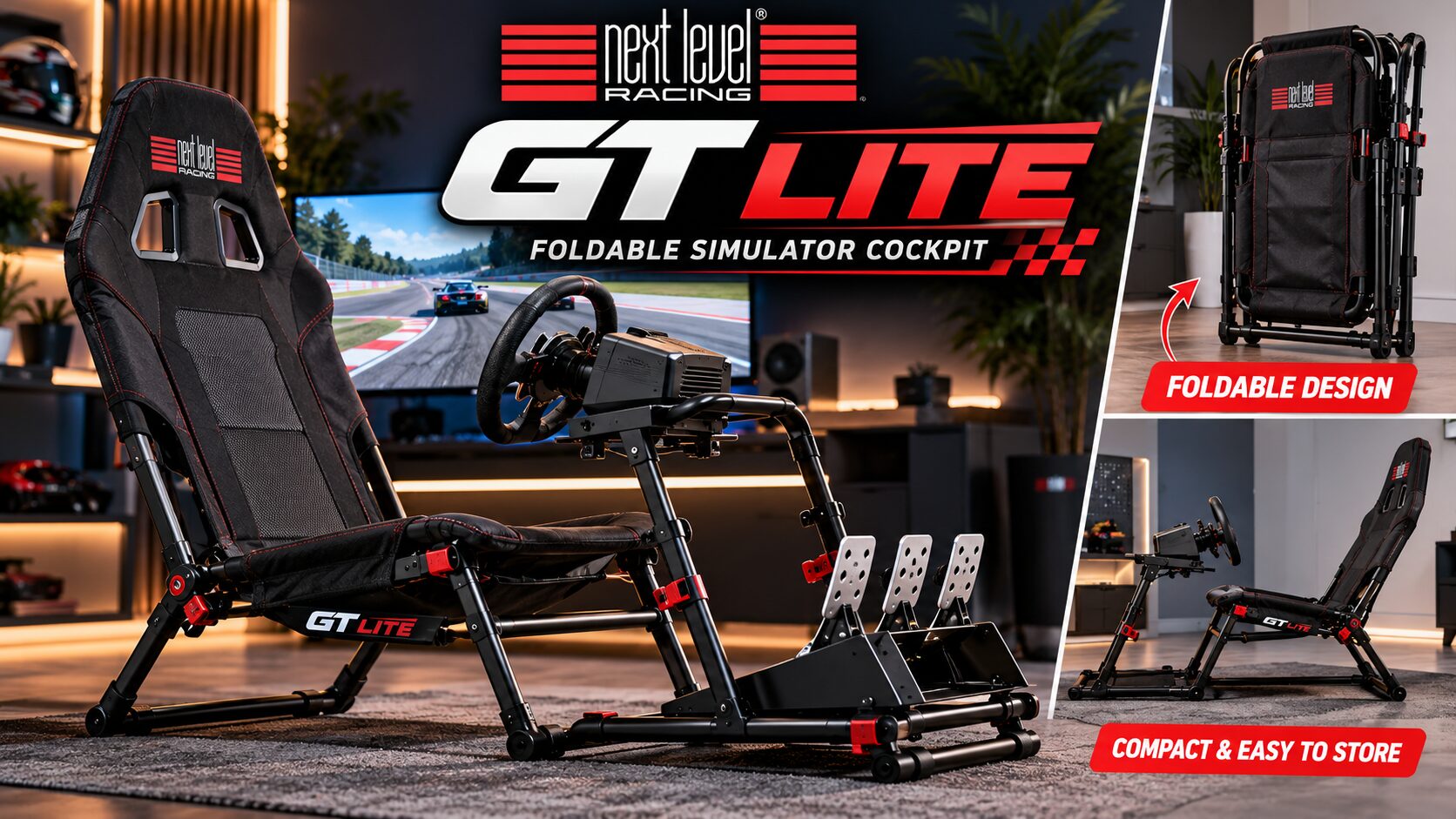

Next Level Racing GT Lite Foldable Simulator Cockpit Review

Next Level Racing GT Lite Technical Specifications

The dimensions and limits above are manufacturer specifications, not measurements taken independently for this article. Check your available floor space before ordering: even folded, this is a substantial object, especially with wheel and pedal hardware attached.

Design and Build Quality: Where the GT Lite Makes Its Compromises

Folding Frame and Adjustment Hubs

The GT Lite uses a tubular folding frame rather than a permanent aluminum-profile structure. Its proprietary adjustment hubs hold the frame in its driving configuration and allow it to collapse for storage. Next Level Racing states that each hub can withstand 150 kg of force. That claim describes a hub-related load specification, not a 150 kg user weight rating or proof that the assembled cockpit has zero flex.

The engineering trade-off is familiar: joints and movable sections make a product easier to store but create more potential movement than a well-braced fixed frame. I would evaluate the GT Lite as a carefully designed portable seat, not as a replacement for a heavy-duty competition rig.

Wheel Deck

The wheel mounting area supports common hard-mount patterns and clamped wheelbases. Its performance will depend on how tightly the fasteners are secured, the wheelbase’s torque output, and the driver’s steering style. A moderate amount of movement may be acceptable on a gear-driven wheel; with a stronger direct-drive base, the same movement can become distracting.

Pedal Support

The integrated pedal mounting is a meaningful improvement over leaving a pedal set loose on carpet. Hard mounting prevents the pedals from simply sliding away. However, resisting sliding is not the same as resisting flex. Very stiff brake pedals can place substantial loads into the folding frame, especially when the driver braces against the seat.

Shifter Mount

The included side mount is an unusually useful feature at this level. It can be installed on the left or right, making the cockpit suitable for either preferred shifting hand. Before buying an unusually large shifter or handbrake, confirm its hole pattern, required clearance and adapter needs.

Comfort and Driving Position

GT-Style Ergonomics

The GT Lite uses an upright-to-reclined GT driving position. This works naturally for road cars, touring cars, GT3 racing and rally simulations. It does not convert into a low Formula seating layout. Anyone specifically seeking both layouts should compare the best sim racing cockpits and the F-GT Lite before buying.

Seat Fabric and Heat

The breathable fabric should be more forgiving in warm rooms than an unventilated synthetic-leather bucket seat. But breathability alone does not determine comfort. Seat shape, lower-back support, thigh angle and pressure distribution all matter during long sessions. I would avoid promising all-day comfort without testing it with drivers of different sizes.

Adjustability

Next Level Racing publishes a supported user-height range of 120–200 cm. That broad range is useful, but fit will still depend on leg-to-torso proportions. I would check knee clearance, pedal reach, wheel height and whether the elbows remain slightly bent when gripping the wheel.

Entry and Exit

A folding tubular cockpit generally requires more deliberate entry and exit than a normal office chair. In a tight room, make sure there is enough side clearance not only for racing but also for getting into the seat safely.

Performance Analysis: Force Feedback, Braking and Stability

Gear-Driven and Belt-Driven Wheels

For Logitech G29/G920/G923 and common Thrustmaster wheels, the GT Lite offers a useful upgrade from a desk clamp and loose pedals. The wheel, pedals and seat remain positioned relative to each other. That consistency can make braking and steering feel more repeatable even when the cockpit itself is not completely rigid.

Entry-Level Direct Drive

The manufacturer lists compatibility with MOZA R3, R5 and R9, Fanatec CSL DD 5 Nm and 8 Nm, and Simagic Alpha Mini. Its stated support extends to entry-level direct-drive bases up to 10 Nm. I would still use conservative force-feedback settings and pay attention to wheel-deck movement. Mount compatibility does not imply identical feel across every wheelbase.

High-Torque Direct Drive

Next Level Racing explicitly identifies higher-output units such as MOZA R16/R21 and Fanatec DD1/DD2 as mountable but not recommended. That distinction matters. A cockpit should be selected for the forces it will actually experience, not merely the ability to line up mounting bolts. For serious high-torque use, I would choose a fixed, rigid chassis.

Load-Cell Pedal Performance

Load-cell pedals measure applied force, so their feel depends on a stable seat and pedal relationship. A hard brake application can cause the frame or pedal area to shift slightly, reducing consistency. I would start with a moderate brake-force setting and only increase it if the cockpit remains stable and comfortable. The manufacturer’s compatibility list includes several load-cell-capable pedal families, but that does not establish a universal maximum braking force.

Does a Cockpit Make You Faster?

Not automatically. A cockpit can improve consistency by preventing wheel and pedal position changes, but lap times still depend on practice, car setup, driving technique and the simulation. No lap-time improvement has been measured for this article.

Folding, Portability and Storage

The defining feature is that the GT Lite folds with electronics attached. That can spare a small-room racer from dismantling the entire setup after every session. It is particularly valuable when the same room serves as an office, bedroom or living area.

However, foldable does not mean effortless. Cables need slack, the mounted wheel adds weight and bulk, and the user must follow the folding sequence without pinching wires. With a heavy wheelbase and pedals installed, I would treat the assembly as awkward to move even though the bare cockpit weighs only 14.4 kg.

Its stated folded footprint is 104 × 93 × 30 cm. Before ordering, I would mark that footprint on the floor and check the intended storage path, doorway clearance and nearby furniture. This is a better test than relying on the word “compact” in product marketing.

Compatibility: Logitech, Thrustmaster, Fanatec, MOZA and More

Compatibility describes physical mounting, not universal software or console support. Console compatibility is determined primarily by the connected wheelbase and peripherals. For more detail, see MOZA vs Fanatec, best sim racing shifters, and best direct-drive racing wheels. Confirm those internal URLs exist on your website before publishing.

How I Evaluated the GT Lite: Review Methodology

This is a specification-led editorial review, not a hands-on laboratory test. I evaluated the published design against the practical needs of a home sim racing cockpit. The following weighting explains my purchasing priorities rather than presenting fabricated measured scores.

Hands-On Tests I Would Run

1. Assemble the cockpit and document total setup time and tools.
2. Measure wheel-deck deflection under repeatable steering loads.
3. Measure pedal-frame movement at several known braking forces.
4. Check comfort during 30-, 60- and 120-minute driving sessions.
5. Repeat folding and unfolding cycles with hardware mounted.
6. Inspect fasteners and hubs for loosening after repeated use.
7. Measure actual stored dimensions with a wheel and pedal set installed.

No numerical results are provided because these tests have not been performed for this review.

Next Level Racing GT Lite Pros and Cons

GT Lite vs F-GT Lite vs Fixed Sim Racing Cockpit

The F-GT Lite is not simply the same cockpit in another color: its principal difference is the ability to switch between GT and Formula positions. The right choice depends on whether that extra driving position is worth its additional size, weight and cost.

Buying Decision Matrix

Upgrade Path and Long-Term Ownership

I would view the GT Lite as an excellent way to get out of a desk setup, not as the last cockpit a serious racer will ever buy. It can accommodate upgrades within its intended hardware class: a better steering wheel, modest direct-drive wheelbase, shifter and a reasonable pedal set.

The point to reconsider the chassis is when the rig starts determining your wheelbase torque or brake settings. If you reduce force feedback simply to avoid movement, or cannot use the brake pressure you want, a fixed cockpit becomes a meaningful upgrade.

Practical Accessories

• A suitable floor mat to protect flooring and reduce unwanted movement.
• Cable straps with enough slack to fold the frame safely.
• A separate monitor stand to avoid screen shake.
• A compatible haptic seat pad if desired, after checking fit and cable routing.
• Manufacturer-approved shifter and handbrake accessories where needed.

Check sim racing cockpit setup guidance for mounting, ergonomics and equipment planning.

Who Should Buy the Next Level Racing GT Lite?

Buy It If…

• You cannot leave a permanent racing rig assembled.
• You primarily drive GT, touring, rally or road cars.
• You use a Logitech or Thrustmaster entry-level setup.
• You want a practical first cockpit for modest direct-drive hardware.
• You want a shifter mount without purchasing a separate bracket.

Avoid It If…

• You own a high-torque wheelbase and run strong force feedback.
• You rely on a very stiff load-cell brake.
• You want a rigid, permanent, highly modular chassis.
• You need a dedicated Formula driving position.
• You cannot accommodate its folded dimensions.

Frequently Asked Questions About the Next Level Racing GT Lite

Is the Next Level Racing GT Lite worth it?

It is worth considering if you need a complete cockpit that can fold away and you use entry-level or moderate-force hardware. Fixed cockpits are better for maximum rigidity.

Does the GT Lite fold with the wheel attached?

Yes. The manufacturer designs it to fold with electronics attached, although mounted hardware adds bulk and weight.

Is the GT Lite compatible with the Logitech G29?

Yes. The manufacturer lists Logitech G29 compatibility.

Can I use a Logitech G920 or G923?

Yes. Both are included in the manufacturer’s compatibility guidance.

Does the GT Lite support direct-drive wheels?

Yes. Next Level Racing states support for entry-level direct-drive bases up to 10 Nm, including specified MOZA and Fanatec models.

Can I use a MOZA R5?

Yes. The MOZA R5 is on the manufacturer’s compatible wheelbase list.

Can I use a MOZA R9?

Yes. The MOZA R9 is listed as compatible, but drivers should assess flex and use appropriate force-feedback settings.

Can I mount a Fanatec CSL DD?

Yes. The 5 Nm and 8 Nm CSL DD variants are listed as compatible.

Can I use a Fanatec DD1 or DD2?

The manufacturer says they can mount but are not recommended. A more rigid cockpit is a better choice.

Does it include a shifter mount?

Yes. A dedicated shifter support is included and can be fitted on either side.

Can it support a load-cell brake?

Several compatible pedal sets have load-cell options, but very high brake forces can expose frame movement. There is no universal published load-cell force limit for this article.

Is the GT Lite comfortable for long sessions?

The breathable seat and adjustable position are promising, but actual comfort depends on body shape, seating posture and session length. No independent long-duration comfort test was performed here.

What is the maximum user weight?

130 kg (287 lb), according to Next Level Racing.

How tall can the driver be?

The published supported height range is 120–200 cm.

How much does the GT Lite weigh?

14.4 kg (31.7 lb) without the additional weight of mounted racing electronics.

What are the folded dimensions?

104 × 93 × 30 cm according to the manufacturer. Mounted equipment may affect the practical storage envelope.

Does the GT Lite include a steering wheel and pedals?

No. The racing electronics are sold separately.

Can the GT Lite switch to a Formula position?

No. It is a GT-position cockpit. The F-GT Lite supports both GT and Formula layouts.

Is the GT Lite better than a wheel stand?

It adds a dedicated seat and fixes the seat-to-pedal relationship, which can improve consistency. A heavy-duty wheel stand may be more rigid at the wheel deck, depending on model.

Will it make me faster?

It may improve consistency compared with an unstable desk setup, but there is no guaranteed lap-time improvement.

Does the seat have to be assembled?

Yes. Assembly is required; the manufacturer provides instructions and mounting hardware.

Can I add a monitor directly to it?

Next Level Racing lists compatible freestanding monitor stands. Confirm the exact stand model rather than assuming every screen can be mounted directly to the folding frame.

Is the GT Lite suitable for apartments?

Yes, if its open and folded dimensions fit your room and storage location.

Is the GT Lite the same as the GTLite Pro?

No. They are distinct products; check the exact model name and specification sheet before ordering.

Final Verdict: Should You Buy the Next Level Racing GT Lite?

The GT Lite makes the most sense when storage space is the deciding factor. It delivers a more coherent driving position than a typical desk setup, includes a shifter mount and supports a broad range of popular entry-level hardware. Its foldable design is not a gimmick: for someone who shares a room with work or family activities, the ability to store the entire simulator matters.

But I would not choose it solely because a wheelbase appears on a compatibility list. With demanding direct-drive settings and stiff load-cell pedals, a rigid fixed chassis is a better long-term investment. The GT Lite is a smart compromise, not a substitute for every cockpit category.

Sources for specifications and compatibility: Next Level Racing GTLite product page and official GTLite support documentation. Product availability, prices and compatibility can change; confirm the exact variant before ordering.
